Overview
LinkedIn is a business-oriented social networking service. LinkedIn was founded in December 2002 and launched on May 5, 2003. It is mainly used for professional networking. In this blog post, a step by step procedure is shown for integrating LinkedIn with Mule ESB LinkedIn connector.
Versions and Assumptions
- In this blog post, we are using
- LinkedIn Connector 1.1.0
- Anypoint Studio
- Mule ESB Server 3.5.2
- To use this application in the project, a LinkedIn account is necessary for testing
- We need to create a new LinkedIn app under LinkedIn developer apps to be able to communicate with the LinkedIn account from Mule ESB application
- In this blog post, we will be using OAuth2 authentication to connect to LinkedIn using Mule ESB LinkedIn Connector
Configuring LinkedIn App
- Go to https://www.linkedin.com/secure/developer
- Click on Add new Application
- Fill in the form and click on Add Application
- Make a note of the consumer key, consumer secret and the OAuth2 Redirect URL as these will be used during our Mule ESB application configuration
- Click on Done
A sample screen shot is given below

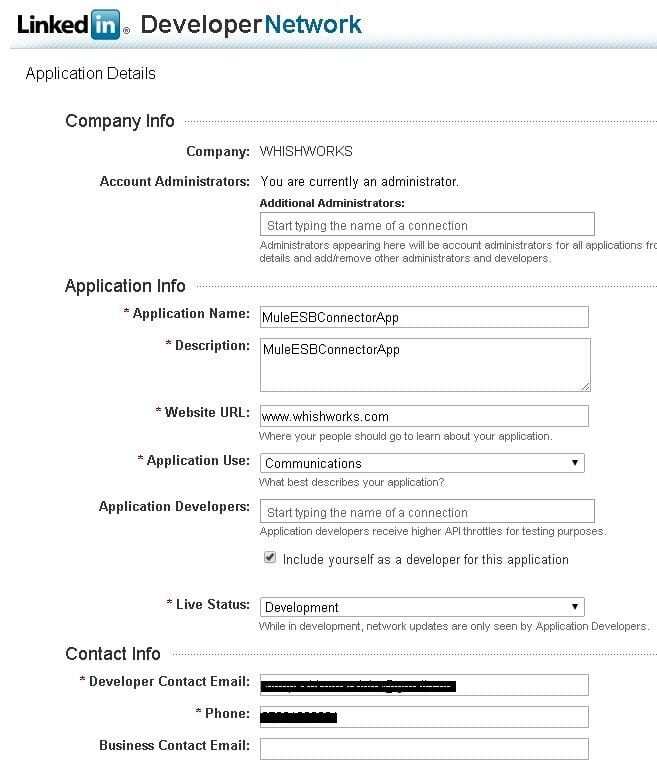

AppRegister_1

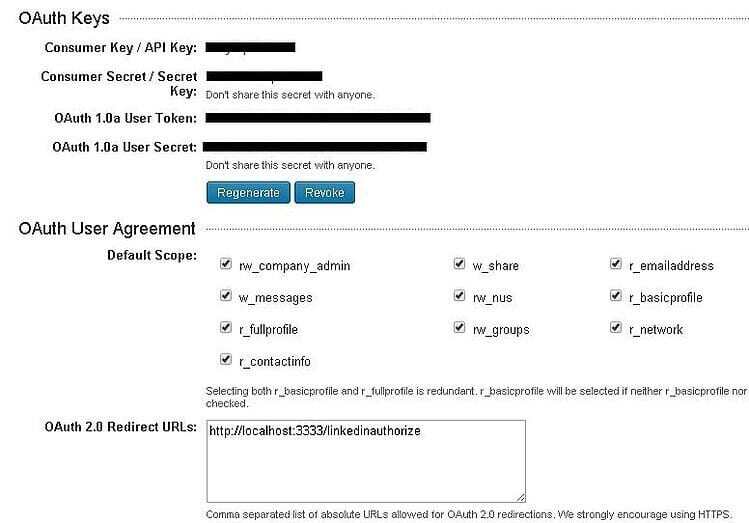

AppRegister_2

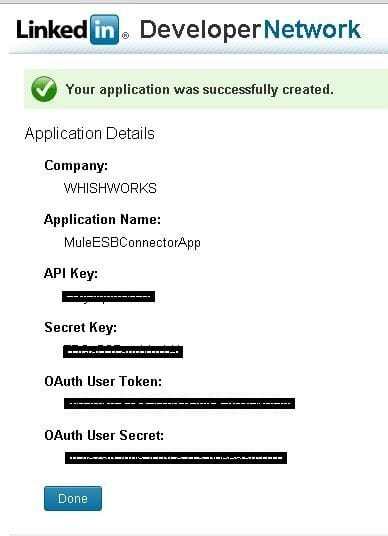

LinkedIn API Details
Configuring LinkedIn Connector
- Create a new Mule Application
- Click on Global Elements tab in your main flow
- Click on Create Button
- Select LinkedIn under Connector Configuration group
- Add LinkedIn consumer key value to API Key text box
- Add LinkedIn consumer secret value to API Secret text box
- Add “r_basicprofile,r_network” in the scope text box
- Click on Oauth tab and specify domain, local port, remote port and Path values
- The Oauth values should be same as what is configured in LinkedIn App
A sample screen and XML configuration is given below:

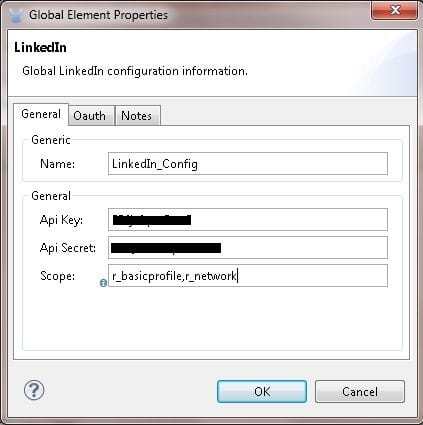

LinkedIn Connector_1

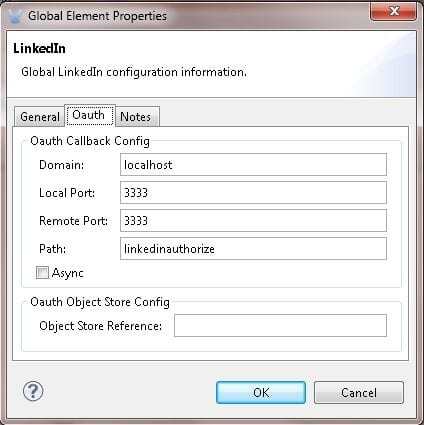

LinkedIn Connector_2
<linkedin:config name="LinkedIn_Confog" apiKey="${apiKey}"
apiSecret="${apiSecret}" doc:name="LinkedIn" scope="r_basicprofile,r_network">
<linkedin:oauth-callback-config domain="localhost"
localPort="3333" remotePort="3333" path="linkedinauthorize" />
</linkedin:config>
Mule Flow for LinkedIn Authentication and getting user profile

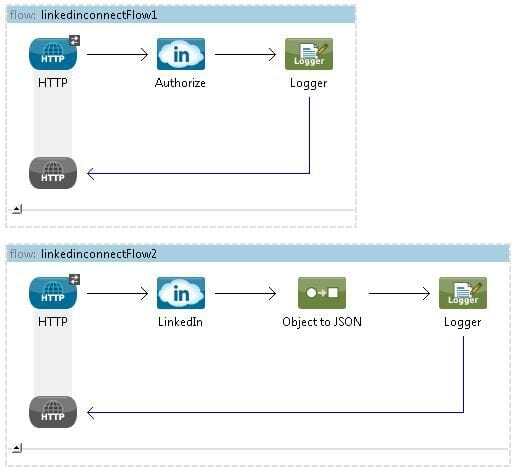

- Configure a flow as given below
<flow name="linkedinconnectFlow1" doc:name="linkedinconnectFlow1">
<http:inbound-endpoint exchange-pattern="request-response"
host="localhost" port="3300" doc:name="HTTP" path="linkedinconnect" />
<linkedin:authorize config-ref="LinkedIn_Confog"
doc:name="Authorize" />
<logger message="#[flowVars]" level="INFO" doc:name="Logger" />
</flow>
<flow name="linkedinconnectFlow2" doc:name="linkedinconnectFlow2">
<http:inbound-endpoint exchange-pattern="request-response"
host="localhost" port="3300" path="getuser" doc:name="HTTP" />
<linkedin:get-profile-by-url config-ref="LinkedIn_Confog"
url="https://www.linkedin.com/pub/rupesh-sinha/23/350/200"
profileType="PUBLIC" doc:name="LinkedIn">
<linkedin:profile-fields>
<linkedin:profile-field>FIRST_NAME</linkedin:profile-field>
<linkedin:profile-field>LAST_NAME</linkedin:profile-field>
</linkedin:profile-fields>
</linkedin:get-profile-by-url>
<json:object-to-json-transformer
doc:name="Object to JSON" />
<logger message="#[payload]" level="INFO" doc:name="Logger" />
</flow>
Testing and Observation
- Deploy the mule application
- Hit the following URL on the browser
http://localhost:3300/linkedinconnect
- LinkedIn will ask us to authorize the new app to connect to LinkedIn as shown below
- Provide the username and password
- Click on Allow access
- We should now see “oauth_token” and “oauth_verifier” values printed on our browser
- Now hit the below URL
http://localhost:3300/getuser
- We should now see the user public profile details printed on your browser in JSON format
