Email Generation (with Attachment) using Form Component

Learn to create a custom form component which takes user input and on submit would send an email with an attached pdf which would contain the data entered in the form.

Objective

• Understand how to create a custom component in AEM.
• Understand how to create a custom Sling Servlet which would send an email.
• Understand how to create a custom email.
• Understand how to do the OSGI configurations for Mail Service.
• Understand how to use pdfbox API to create a Pdf in the DAM Structure.

What you will build

A custom form component will be built taking user input in the form field. A Sling Servlet will be built which would be creating a pdf in the content DAM Structure and attaching the same pdf to the custom email.

Pre-Requisite

• Java 1.8+
• Maven
• Eclipse/ IntelliJ or any IDE
• AEM Author Instance
• SMTP Email Server

Define the Custom Form Component

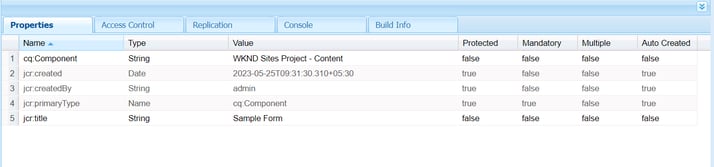

- Create a component under /apps//components.

- sample_form is the component.

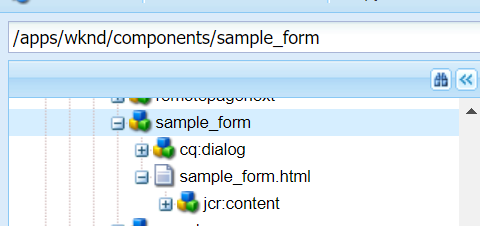

- Create the node cq:dialog and file sample_form.html under the component.

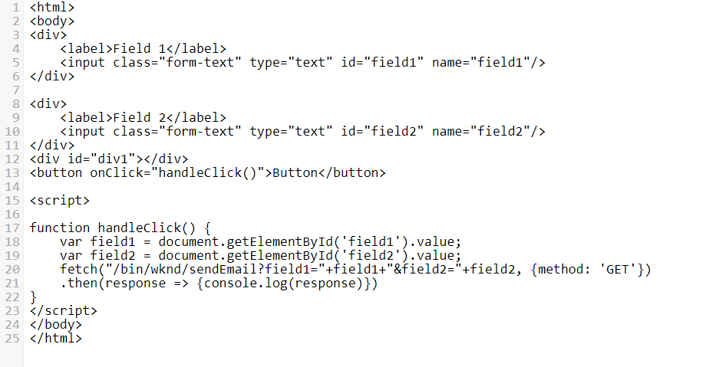

- Add the below code in the sample_form.html.

- Now, open wknd repo in any of the IDE and create a Servlet under wknd.core package.

- For the Servlet code, you can refer to the following URL :

https://github.com/anshul039/AEM-WKND/blob/main/core/src/main/java/com/adobe/aem/guides/wknd/core/servlets/EmailServlet.java

- Now, go to http://localhost:4502/system/console/configMgr

- Search for Day CQ Mail Service(day.cq.mailer.DefaultMailService).

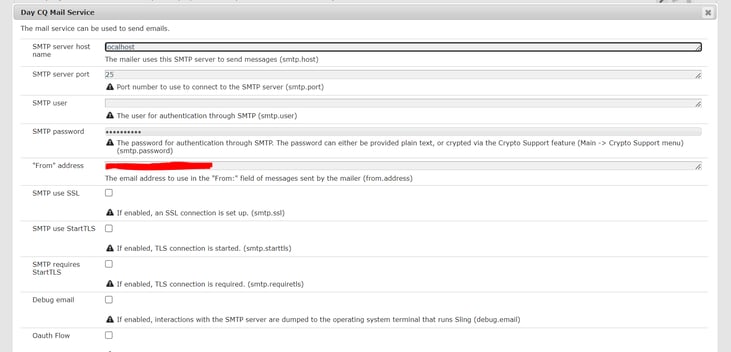

- Update the configurations according to required SMTP server. Below screenshot can be used as reference.

- Update SMTP Server, Port, Username, Password, from details. Below SMTP Server host name is used for testing purpose.

- Actual hostname can be configured as required.

- Make sure your SMTP Server is up.

- Once the code is deployed to the Server, create a sample page and add the component to the Page.

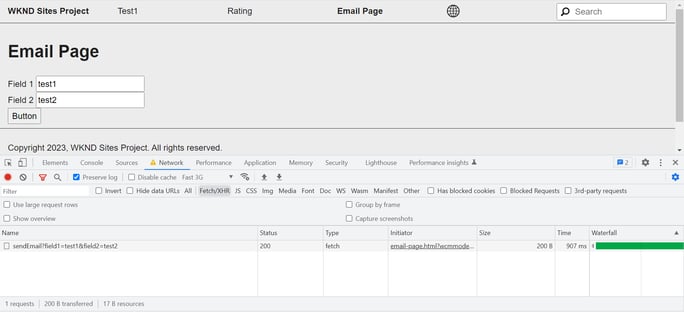

- The page would look as below

- Enter the values in the form and click on Button. You can see in the network tab, a request is triggered.

- On Click of Button, 2 actions will be performed.

• Email Triggered with PDF attachment.
• Storing same PDF in AEM DAM.

Once, you get the success response with the Http Status as 200 OK. Check your email, you must have received an email.

- You can find the pdf content as below. You can modify the pdf content through the code in which format user would like to display.

- Also, once you click on Button, the corresponding pdf is also stored in AEM DAM.

- User can store the PDF in any of the path under/content/dam

Hope you liked the article. Please reach out to digital group: digital.interactive@coforge.com for any query.
